Trading Blox Color Selection Dialog:

All BPV Series will provide access to the Trading Blox Color Selection Dialog when the BPV series uses a System, Test or Simulation Scope setting with a BPV numeric series.

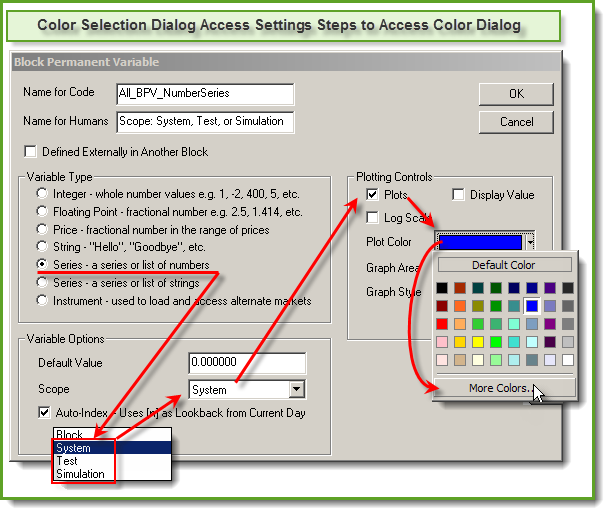

To display the color selection dialog, follow the click steps in this next image:

Click to Enlarge; Click to Reduce.

Color Selection



When the "More Colors..." button is clicked the dialog in this next image will appear:

Click to Enlarge; Click to Reduce.

Color Selection Options

Just about any color's RGB value can be discovered using this dialog.  However, if the chart image where this color is to be used will appear in a report generated with a HTML Browser process that is used to create Trading Blox reports, picking a color from the Basic Color Matrix Table will keep the colors used within the Safe-Color range that are easily reproduced using a HTML process.



Applying the RGB, (Red, Green, Blue) values to the Trading Blox ColorRGB function requires, place the color numbers using Blue, Green and Red as the first, second and third parameter locations



Script Color Assignment Examples:

'                       Red  Green  Blue
PlotColor1 = ColorRGB(  255,     0,   0 )   '   Plot Red Color

PlotColor2 = ColorRGB(    0,   255,   0 )   '   Plot Green Color

PlotColor3 = ColorRGB(    0,     0, 255 )   '   Plot Blue Color



'  Trade Color Preference Settings Color Numbers values
PlotColor1 = ColorCustom1   '   Use Preference ColorCustom1 Value
PlotColor2 = ColorCustom2   '   Use Preference ColorCustom2 Value
PlotColor3 = ColorCustom3   '   Use Preference ColorCustom3 Value
